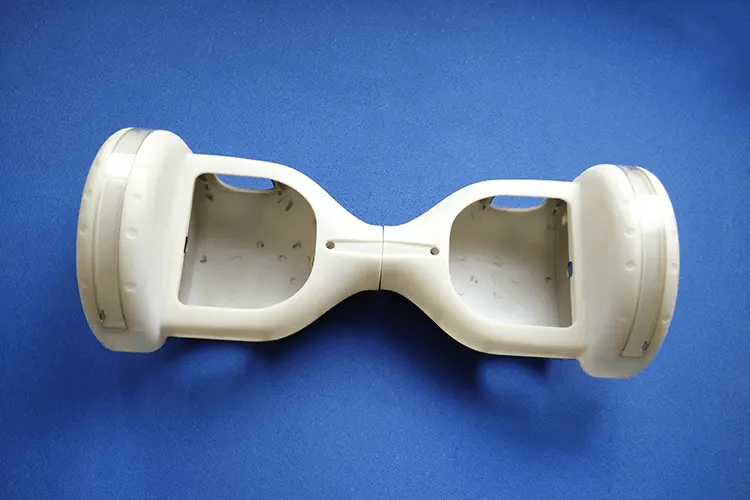

Vacuum casting, also known as silicone molding or polyurethane (PU) casting, is a manufacturing process used to create high-quality prototypes or low-volume production parts. It involves the replication of a master pattern using silicone molds and the pouring of liquid polyurethane resin into the mold cavity under vacuum pressure. The resin cures to form a solid replica of the master pattern, producing parts with detailed features and finishes.
The vacuum casting process typically involves the following steps:
Master Pattern Creation: A master pattern is produced using various methods such as 3D printing, CNC machining, or manual fabrication. The master pattern represents the desired shape and features of the final part.
Mold Preparation: A two-part silicone mold is created around the master pattern. The master pattern is encased in a mold box, and liquid silicone rubber is poured over it. The silicone cures to form a flexible mold, capturing the shape and surface details of the master pattern.
Mold Assembly: The silicone mold is cut and separated into two halves, creating a mold cavity. Venting channels and gates are added to allow air and resin to flow during the casting process.
Material Mixing: Polyurethane resin is prepared by mixing two or more liquid components, typically a polyol and an isocyanate. Additives may be incorporated to achieve specific material properties, such as color, hardness, or flexibility.
Vacuum Casting: The prepared polyurethane resin is poured into the mold cavity. The mold is then placed in a vacuum chamber, and a vacuum is applied to remove air bubbles and ensure complete resin penetration into the mold.
Curing: The resin is left to cure and solidify within the mold cavity. The curing time depends on the specific resin formulation and can range from a few hours to several days. Heat or post-curing may be applied to accelerate the curing process if required.
Demolding: Once the resin has fully cured, the mold is opened, and the solidified part is carefully removed. The mold can be reused to produce multiple replicas.
Vacuum casting offers several advantages for prototyping and low-volume production:
Fast Turnaround: Vacuum casting allows for the relatively quick production of functional prototypes or low-volume production parts compared to traditional manufacturing methods.
High Level of Detail: The silicone molds capture intricate details and surface textures of the master pattern, resulting in parts that closely resemble the original design.
Material Versatility: Various polyurethane resins are available with different material properties, including different colors, flexibilities, and hardnesses. This enables the production of parts with specific functional characteristics.
Cost-Efficient for Low Volumes: Vacuum casting is a cost-effective solution for producing small quantities of parts without the need for expensive tooling or equipment required in mass production methods like injection molding.
Design Iteration and Validation: Vacuum casting allows for iterative design changes and testing before committing to mass production tooling. It facilitates design validation, functional testing, and gathering feedback from stakeholders or end-users.
Vacuum casting is widely used in industries such as automotive, aerospace, consumer goods, and medical devices, where quick prototyping, low-volume production, and the replication of complex shapes and details are required.
